PT Mitra Solusi Telematika (MST) and Rajant started their partnership in 2022. We team up with wireless networking specialist Rajant Corporation to support mining customers with n Rajant Kinetic Mesh solutions. With a commitment to providing reliable, fully mobile wireless communications in the most challenging industrial environments, Rajant Kinetic Mesh solutions are designed to meet requirements for mobility, speed, ruggedness, and operational complexity. MST as a Kinetic Mesh® Premier Partner provides wireless feasibility studies, site surveys, installation, training, maintenance, and operation of BreadCrumbs networks.
Rajant’s Kinetic Mesh® network is unlike any other wireless mesh system on the market today, providing fully mobile broadband connectivity that is simple, instantaneous, and fault-tolerant for any application. The network’s power lies in Rajant’s wireless BreadCrumbs: the compact, lightweight, industrial-grade nodes that form this agile, adaptable wireless infrastructure.
Breadcrumbs have unique capabilities that enable them to perform flawlessly in even the most hard-to-network environments and make them ideal for deployment across ever-moving operations.
01.
Peer-to-Peer Functionality
Every Rajant BreadCrumb can hold multiple simultaneous connections, over multiple frequencies, with other nodes in the mesh, eliminating the need for a controller node while adding network reliability.
02.
Deployable as Fixed or Mobile Nodes
Compact, lightweight BreadCrumbs can be fixed to static equipment or deployed directly on moving assets – so machines and personnel can take connectivity with them wherever they go.
03.
Infused with InstaMesh® Intelligence
All BreadCrumbs have Rajant’s patented InstaMesh networking software onboard, which dynamically evaluates and directs traffic via the best available path(s) at any given moment.
04.
Self-Optimize without Intervention
InstaMesh enablesthe nodesto adapt in real-time to quickly or constantly moving network elements. No connections must be broken for new ones to be made, providing for resilient mobility.
05.
Support Seamlessly Scalability
If new BreadCrumbs are added,they automatically begin meshing with neighboring nodes and further strengthen the network by providing additional paths to send traffic.
06.
Perform in Extreme Conditions
The industrial-strength design of the nodes, coupled with IP67-rated dust-tight and water-tight enclosures for most models, allow them to operate continuously in virtually any environment for years.
BreadCrumbs can easily integrate with and enhance existing network infrastructure, including third-party satellite, wired, point-to-point wireless, point-to-multipoint wireless, or can be deployed ad hoc to bring connectivity where no communications infrastructure yet exists.

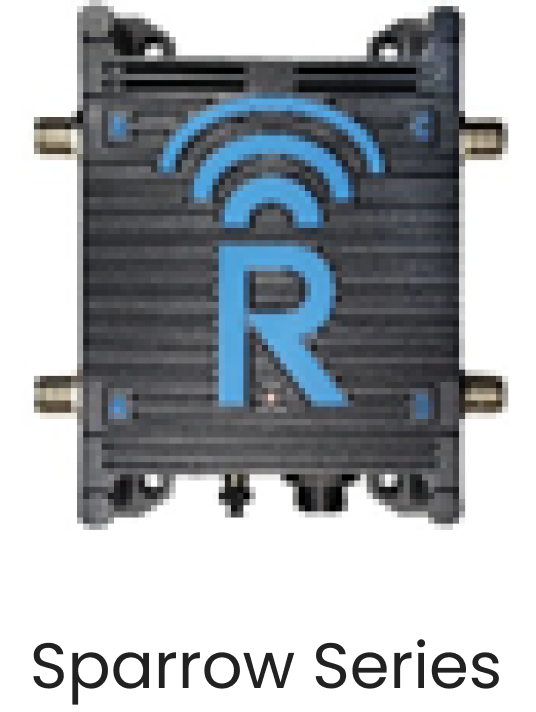

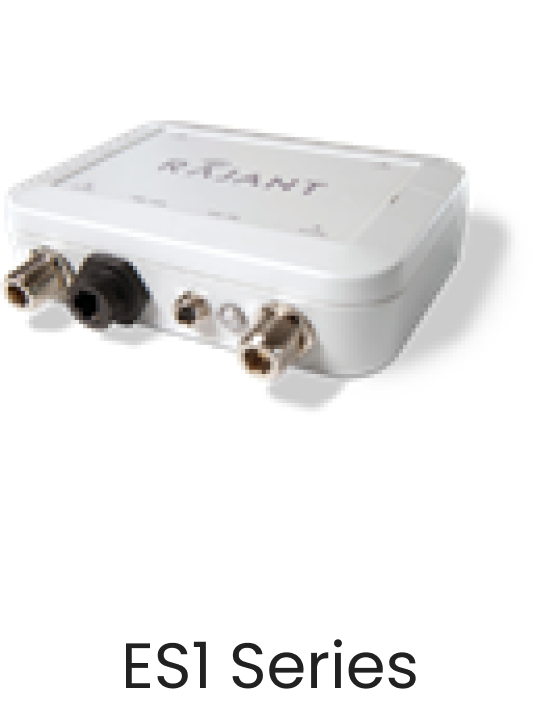

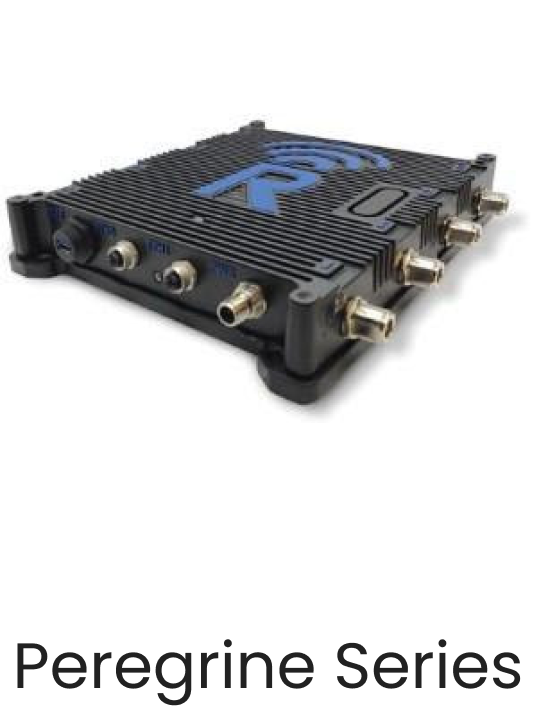

Rajant BreadCrumb Portfolio
Find the Right Radio for the Right Function
|
|
|
|
|
|---|---|---|---|---|
| Typical Radio Configuration | Quad 2x2 MIMO transceivers | Dual 2x2 MIMO transceivers | Dual 2x2 MIMO transceivers | Dual 2x2 MIMO transceivers |
| Number of Radios | 4 | 2 | 2 | 2 |
| Max Antenna Ports | 8 | 4 | 4 | 4 |
| LTE Supported | Yes | No | No | No |
| 2.4 GHz Supported | Yes | Yes | Yes | Yes |
| 4.9 GHz Supported | No | Yes | Yes | Yes |
| 5 GHz Supported | Yes | Yes | Yes | Yes |
| 10/100/1000 Ethernet | 2 | 2 | 1 | 1 |
| # of USB Ports | 1 | 1 | 1 | 1 |
| Enclosure | Aluminum IP67 | Aluminum IP67 | Aluminum IP67 | Plastic IP67 |
| Input Voltage | 20 to 60 VDC | 20 to 60 VDC | 9 - 30 VDC | 9 to 30 VDC |
| Power Consumption (idle/peak) | 10W / 34W | 10W / 24W | 2.8W / 15W | 2.8W / 15W |
| Operating Temperature (with heater if available) | -40o to 80oC | -40o to 80oC | -40o to 70oC | -40o to 60oC |
| Ideal Applications | High performance and high throughput. Enhanced security. Military, Mining, Rail, Shipping Ports, Heavy Construction | High performance and high throughput. Enhanced security. Military, Mining, Rail, Shipping Ports, Heavy Construction | Mid-tier performance. Enhanced security. Military, Mining, Rail, Shipping Ports, Heavy Construction | Mid-tier, less ruggedized. Energy, Plants, Warehouses, Agriculture, Manufacturing, Commercial, Light Vehicles, Public Safety, Industrial Security |
| Max Modulation | 256-QAM | 256-QAM | 64-QAM | 64-QAM |
| Max Channel Size | 80 MHz | 80 MHz | 40 MHz | 40 MHz |
| Maximum Transceivers | 4 | 2 | 2 | 2 |
| MIMO | 2x2 | 2x2 | 2x2 | 2x2 |
| Combined Data Rate | Up to 2.6 Gbps | 1.7 Gbps | 600 Mbps | 600 Mbps |
| User Throughput | Up to 600 Mbps | Up to 600 Mbps | Up to 70 Mbps | Up to 70 Mbps |
| Radio Type | Up to 802.11ac | Up to 802.11ac | Up to 802.11n | Up to 802.11n |
| Dimensions | 264.9 x 253.7 x 46.2 mm (10.43 x 9.99 x 1.82 in) | 264.9 x 253.7 x 46.2 mm (10.43 x 9.99 x 1.82 in) | 174 x 184 x 47 mm (6.85 x 7.25 x 1.85 in) | 138.735 x 143.154 x 57.15 mm (5.462 x 5.636 x 2.25 in) |
| Weight | 2946 g (6 lbs 7.9 oz) | 2600g (5 lbs 13 oz) | 1312 g (2 lbs 14.3 oz) | 1074 g +/- 100 g (2.37 lb +/-0.22 lb) (weight depends on transceiver configuration) |
SITECH® is a global distribution network for Trimble solutions-the most reliable and rugged construction technology systems available to the heavy civil construction contractor.
With the addition of Trimble site-wide solutions to your heavy civil construction projects, you’re in a more powerful competitive position in the marketplace. Whether you choose to start small or go big, the expanded capability will enable you to earn the bid and be profitable, project after project.
We are committed to serving customers demand for some products and services. Our staffs have experience more than years in this field to complete and support Trimble, our world-class products.
Sitech Indonesia
Seeking a deeper understanding and comprehensive information about Sitech Indonesia? We’re here to help.

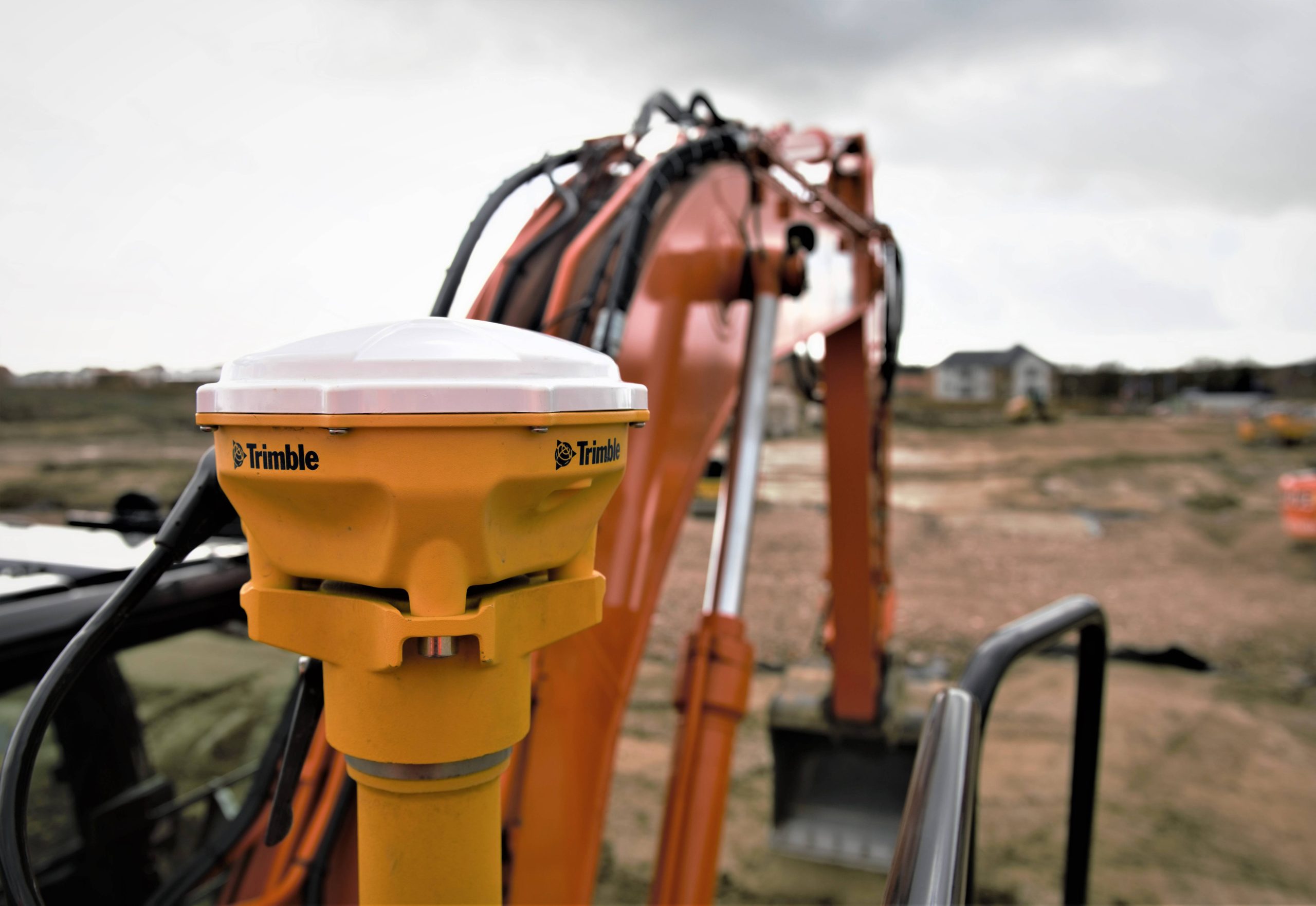

Trimble Machine Control and Guidance Solutions
Trimble has developed the most robust portfolio of machine control and guidance systems in the industry. Trimble Machine Control Systems have been designed to be fully compatible at the site level — utilizing the same data structure and format, the same user interface in a cab and the office, and the same GNSS and Total Station-based site infrastructure.
01. Trimble Earthwork
- Earthworks for Compact Machines
- Earthworks for Excavators
- Earthworks for Motor Graders
- Earthworks for Dozers
- Earthworks for Wheel Loaders
- Earthworks for Scrapers
02. Trimble Groundworks
- Groundworks for Drilling
- Groundworks for Piling
- Groundworks for Dynamic Compaction
03. Trimble Roadworks
- Roadworks for Asphalt Pavers
- Roadworks for Milling Machines
- Roadworks for Slipform Pavers
04. Siteworks Machine Guidance
- SMG for Machine Guidance
- SMG for Surveying
05. Hardware for Monitoring
- SNM941 Connected SiteGateway
- SNM451 Connected Site Gateway

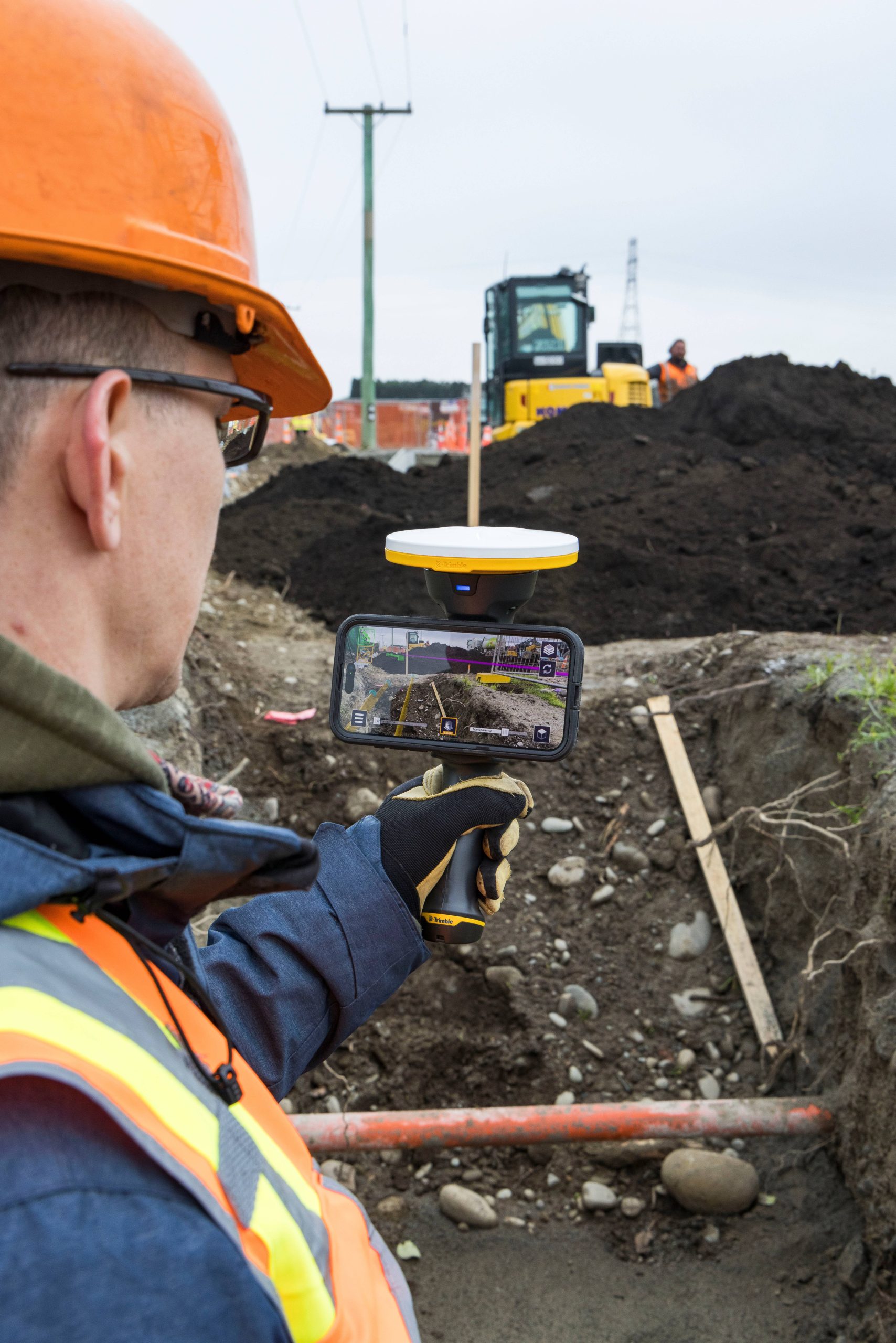

06. Augmented Reality Systems
- Site Vision

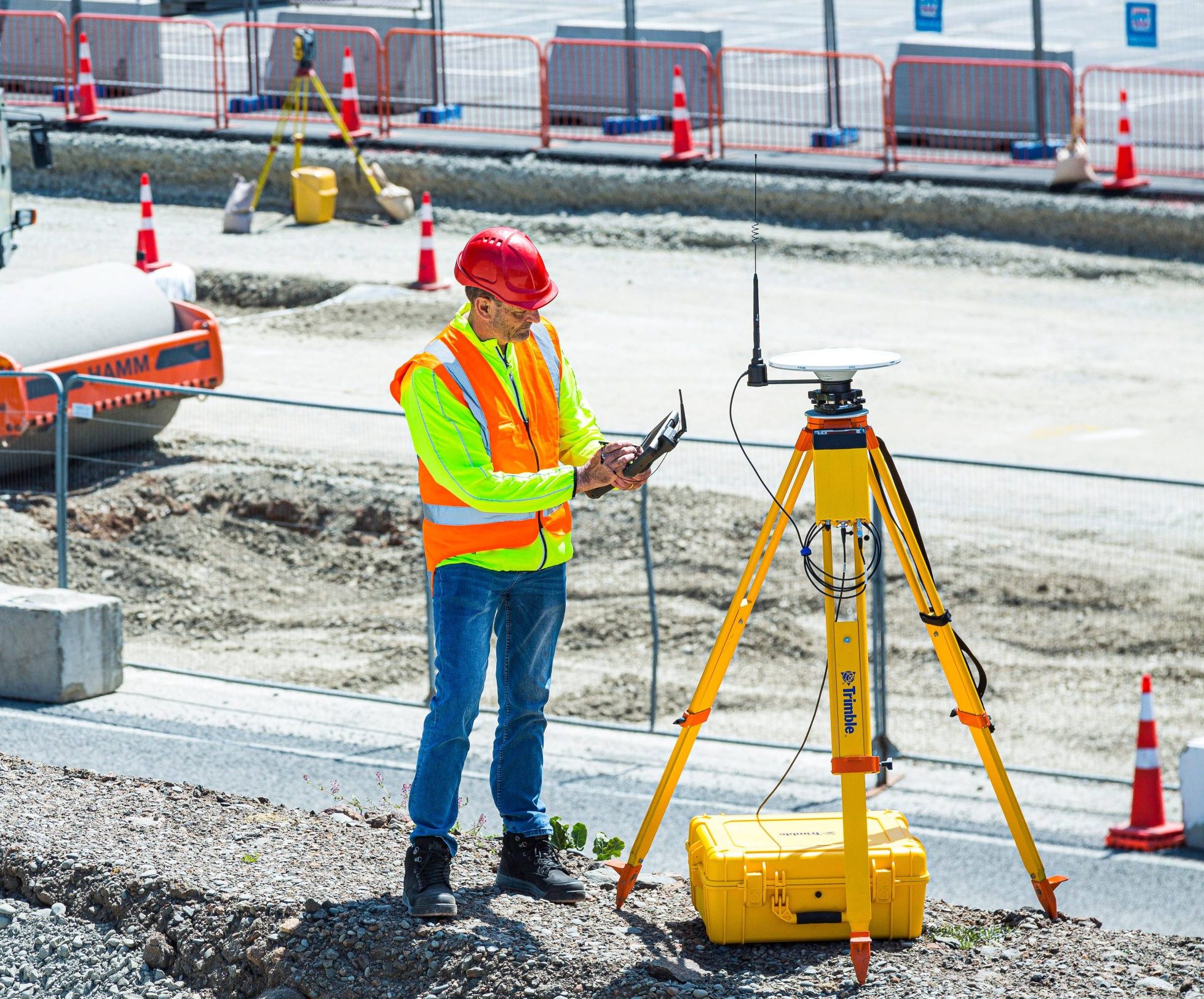

Trimble Surveying Solutions
Trimble Surveying Solutions give contractors targeted tools for every person on the job site; work at every stage is performed faster, with fewer errors and fewer material costs. From the field, truck, or office, any person on the construction site can be connected and equipped with accurate positioning, consistent digital design information, and the ability to locate, measure, and record information.
01. Trimble GNSS Receiver
- R750 GNSS Modular Receiver
- R780 GNSS Smart Antenna
- R580 GNSS Smart Antenna
- DA2 GNSS Smart Antenna
02. Trimble Total Stations
- SPS620 Robotic Total Stations
- SPS730 Universal Total Stations
- SPS930 Universal Total Stations
03. Trimble Laser Scanner
- SX12 Scanning Total Stations
04. Trimble Data Collector
- Trimble TSC5 & TSC7 Controller
- Trimble T7 & T100 Tablet
- Trimble TDC6 Handheld
Trimble Software Solutions
Having technology on your machine is one thing, having the ability to connect all your machines and their data and access all this information – onsite or back in the office – is what will make your project successful.
SITECH® offers a whole range of software that will enable you to have this connectivity for your site:
- Trimble Business Center – HCE
- Trimble Stratus
- Trimble WorksManager
- Trimble WorksOS
To support your necessary, we provide some services
01.
Installation
We are willing to install products to the customer’s machine system at their job site.
02.
Training
Training is given to the customer’s staff, who directly operate the product systems, to explain the procedure of the systems.
03.
Problem Solving
We can solve the customer’s problems that occur in your system within 48 hours. If there is a problem with your systems, the first recommended step that you can do is please call +62 (21) 2997-6891 to explain your problem to our support engineers. Our support engineer will kindly guide you to do some simple troubleshooting. If the problem is unable to solve by a short guide, we are willing to do technical services.
